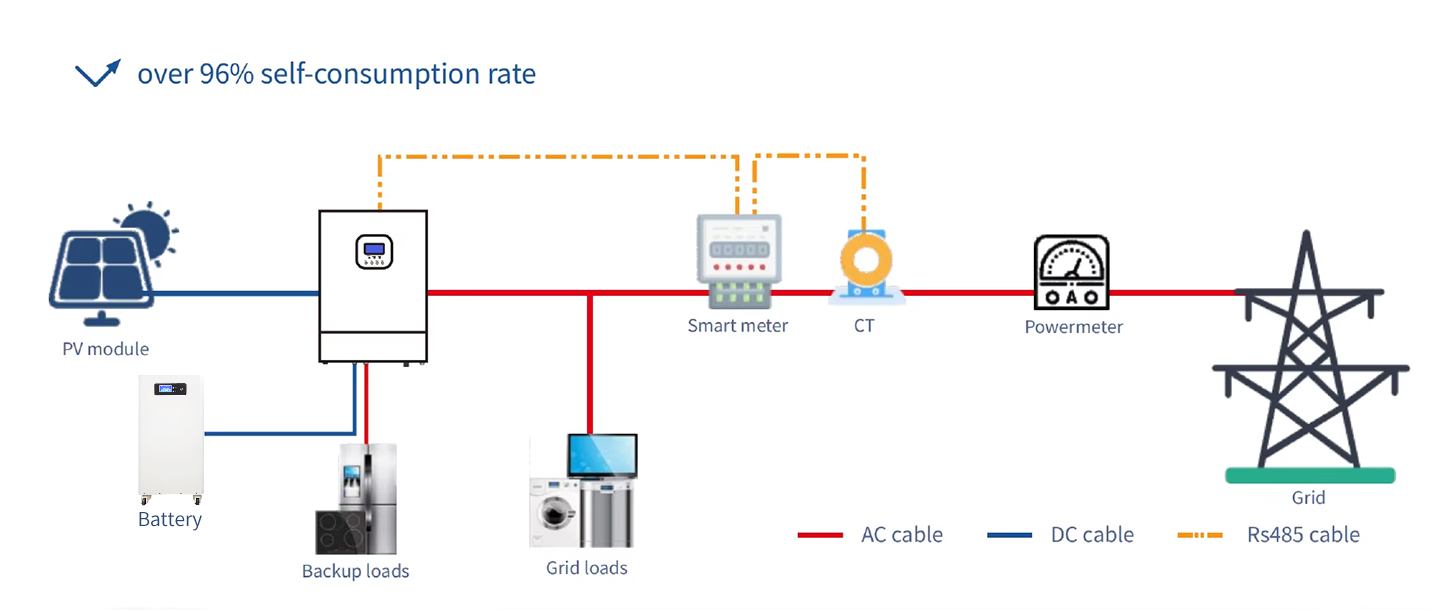

Solution for Residential Energy Storage
Based on your specific vehicle model, load capacity requirements, battery compartment dimensions, color preferences,
and other specifications, we will provide comprehensive customized services utilizing our strong OEM/ODM capabilities.

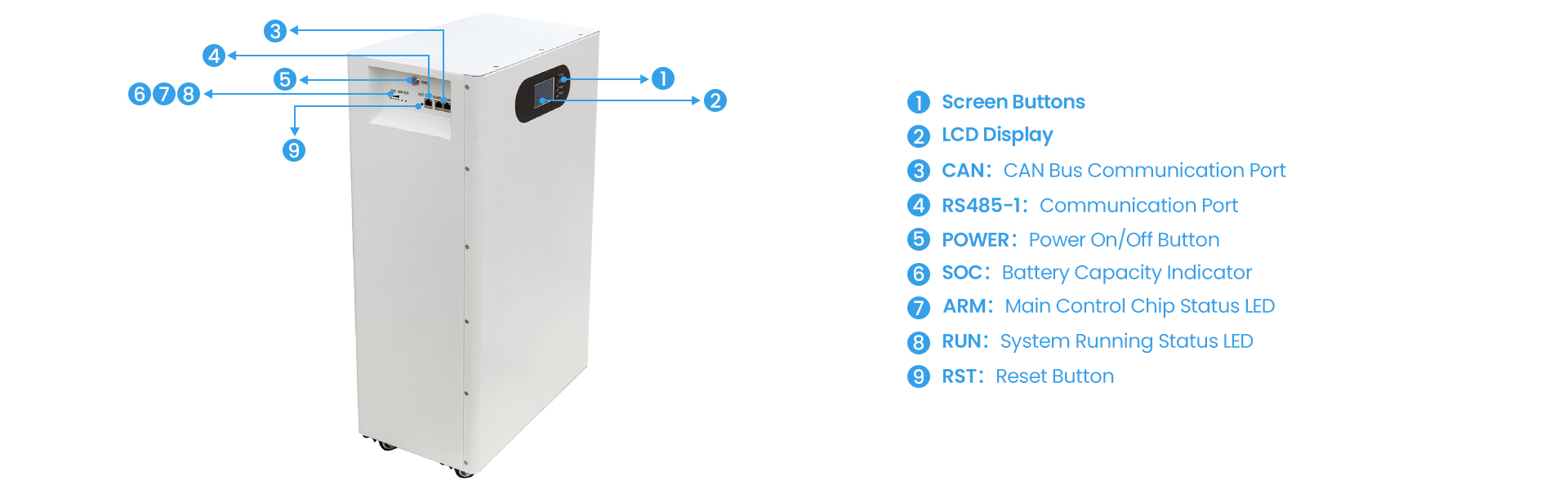

Internal Structure
100% New,A grade honored cells
Battery Accessories
Heat Insulation

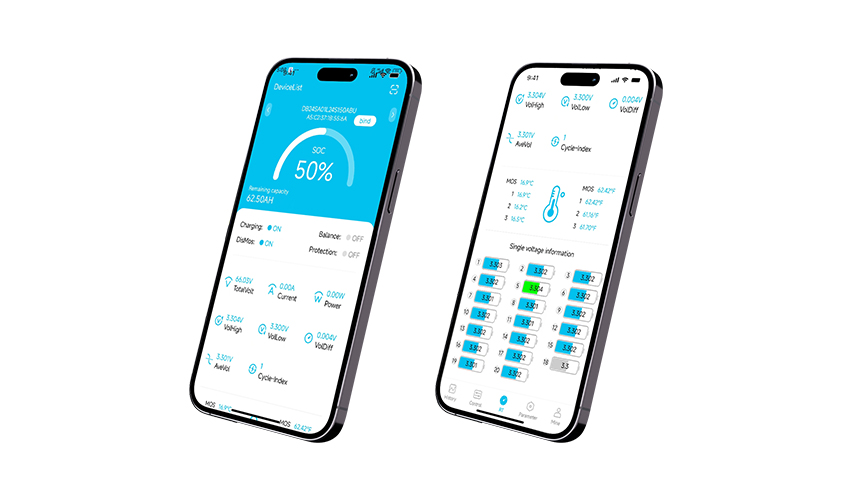

Bluetooth App
Battery Charger[Optional]
Technical Specifications
| COMMON MODELS | LFP-48V100Ah | LFP-48V314Ah | LFP-51.2V314Ah | LFP-48V628Ah | LFP-409.6V104Ah | LFP-409.6V314Ah |
| Usable Capacity | 5120Wh @C2, 25°C | 15072Wh @C2, 25°C | 16076Wh @C2, 25°C | 30144Wh @C2, 25°C | 42598 Wh @C2, 25°C | 128614Wh @C2, 25°C |
| Nominal Voltage | 51.2V DC | 48V DC | 51.2V DC | 48V DC | 409.6V DC | 409.6V DC |
| Operating Voltage Range | 43.2V DC -57.6V DC | 40.5V DC -54V DC | 43.2V DC -57.6V DC | 40.5V DC -54V DC | 345.6V DC -460.8V DC | 345.6V DC -460.8V DC |
| Operating Temperature Range | -20°C – 60°C | -20°C – 60°C | -20°C – 60°C | -20°C – 60°C | 0°C – 60°C | 0°C – 60°C |
| Cycle Life @ 100% DoD | > 2000 cycles (3584Wh @C2, 25°C) | > 5000 cycles (15072Wh @C2, 25°C) | > 5000 cycles (16076Wh @C2, 25°C) | > 5000 cycles (30144Wh @C2, 25°C) | > 5000 cycles (31948Wh @C2, 25°C) | > 5000 cycles (31948Wh @C2, 25°C) |
| Cycle Life @ 70% DoD | > 3500 cycles (2508Wh @C2, 25°C) | > 6500 cycles (10550Wh @C2, 25°C) | > 6500 cycles (11253Wh @C2, 25°C) | > 6500 cycles (21100Wh @C2, 25°C) | > 6500 cycles (22363Wh @C2, 25°C) | > 6500 cycles (22363Wh @C2, 25°C) |
| Dimensions (mm) | 482mm x 380mm x176mm (W x D x H) | 440mm x260mm x741mm (W x D x H) | 518mm x204mm x875mm(W x D x H) | 800mm x260mm x741mm (W x D x H) | 500mm x650mm x900mm (W x D x H) | 436mmx716mm x1295mm *2(W x D x H) |
| Weight (kg) | Appro 45kg | Appro 112kg | Appro 115kg | Appro 210kg | Appro 328kg | Appro 925kg |
| Charge Current (max.) | 100A continuous | 200A continuous | 200A continuous | 200A continuous | 100A continuous | 200A continuous |
| Discharge Current (max.) | 100A continuous | 200A continuous | 200A continuous | 200A continuous | 100A continuous | 200A continuous |
| Over-charge protection | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V | 3.6V |
| Over-charge release | 3.4V | 3.4V | 3.4V | 3.4V | 3.4V | 3.4V |
| Under-discharge protection | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V | 2.7V |
| Under-discharge release | 2.8V | 2.8V | 2.8V | 2.8V | 2.8V | 2.8V |
| Over-current protection | 150A | 300A | 300A | 300A | 200A | 300A |
| Over-current delay | ＜ 3 S | ＜ 3 S | ＜ 3 S | ＜ 3 S | ＜ 3 S | ＜ 3 S |
| Short circuit protection | Have | Have | Have | Have | Have | Have |
| Short circuit protection delay | 800 uS | 800 uS | 800 uS | 800 uS | 800 uS | 800 uS |
| Balance current | ≤30mA | ≤100mA | ≤100mA | ≤100mA | ≤100mA | ≤100mA |
| Balance Condition | 3.4V | 3.4V | 3.4V | 3.4V | 3.4V | 3.4V |
| Self-discharge Rate | < 2% per month | < 2% per month | < 2% per month | < 2% per month | < 2% per month | < 2% per month |
| IP-protection | IP55 | IP54 | IP54 | IP54 | IP54 | IP54 |
| Safety certification | Compliant with UN38.3/IEC62619 | Compliant with UN38.3/IEC62619 | Compliant with UN38.3/IEC62619 | Compliant with UN38.3/IEC62619 | Compliant with UN38.3/IEC62619 | Compliant with UN38.3/IEC62619 |
Advantages
Lithium iron phosphate batteries do not explode or burn at high temperatures or when overcharged, so they have good safety.
Long life lead-acid batteries have a cycle life of about 300 times, with a maximum of 500 times. However, lithium iron phosphate power batteries have a cycle life of over 4000 times(80%DOD).
It has a larger capacity than ordinary batteries (lead acid, etc.).
A lithium iron phosphate battery with the same specification and capacity has a volume of 2/3 of that of a lead acid battery and a weight of 1/3 of that of a lead acid battery.
Mon-toxic, pollution-free, and comply with European ROHS regulations, making them an abso-lute green environmental protection battery certificate.
Lithium iron phosphate batteries have a protective plate (BMS management system) that prevents Overcharging, over-discharging, overcurrent, short circuit, temperature, resulting in longer and safer battery life.
Power Up Your Compatible Ride
We offer customized multi-battery solutions for various vehicletypes to meet the power needs of different
models and provideefficient and adaptable power support.
