Home > Products > 30kWh Low Voltage
,

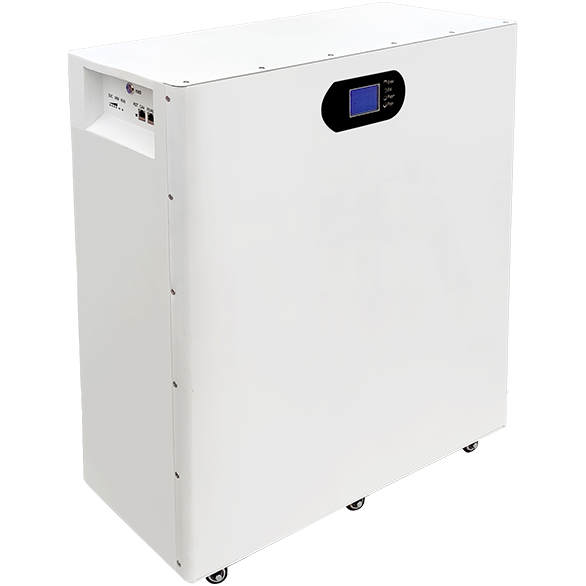

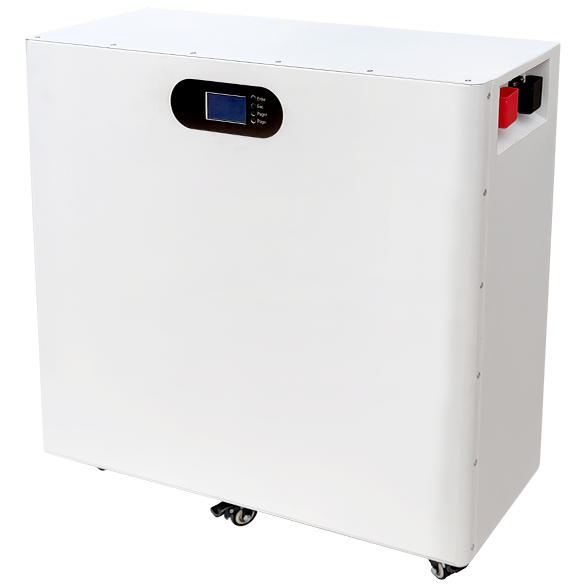

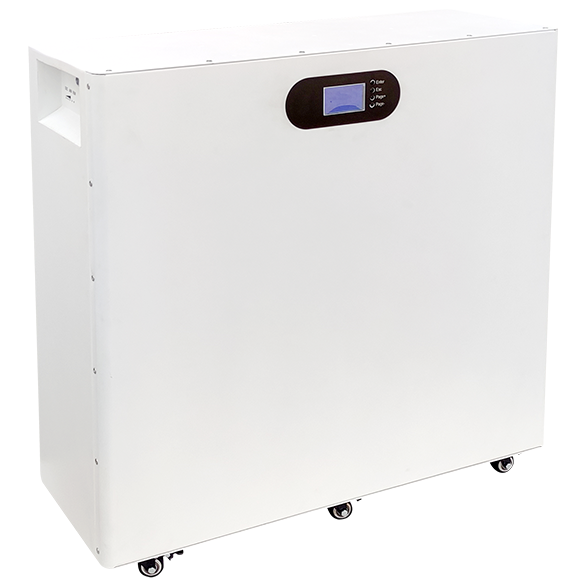

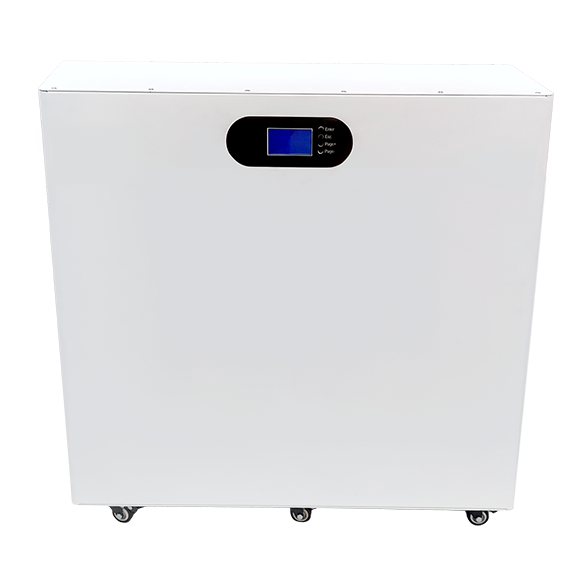

30kWh Low Voltage

  • Safety Performance
    Long life lead-acid batteries have a cycle life of about 300 times, with a maximum of 500 times. However, lithium iron phosphate power batteries have a cycle life of over 4000 times(80%DOD).
  • Long life
    Long life lead-acid batteries have a cycle life of about 300 times, with a maximum of 500 times. However, lithium iron phosphate power batteries have a cycle life of over 4000 times(80%DOD).
  • High-capacity
    Long life lead-acid batteries have a cycle life of about 300 times, with a maximum of 500 times. However, lithium iron phosphate power batteries have a cycle life of over 4000 times(80%DOD).
  • Lightweight
    Long life lead-acid batteries have a cycle life of about 300 times, with a maximum of 500 times. However, lithium iron phosphate power batteries have a cycle life of over 4000 times(80%DOD).
  • Environment Protection
    Long life lead-acid batteries have a cycle life of about 300 times, with a maximum of 500 times. However, lithium iron phosphate power batteries have a cycle life of over 4000 times(80%DOD).
  • Over Discharge
    Long life lead-acid batteries have a cycle life of about 300 times, with a maximum of 500 times. However, lithium iron phosphate power batteries have a cycle life of over 4000 times(80%DOD).
FREE QUOTE NOW EMAIL US NOW

Technical Specifications

Electrical

Usable Energy30KWh[1]
Nominal Voltage51.2 VDC
Nominal Capacity300 Ah
Cycle Life @ 80% DoD≥6000 cycles[1]
Depth of Discharge100% DOD[2]
Operating Voltage Rate41.6V DC-58.4V DC

Mechanical

Cell TypeLiFePO4–A grade prismatic cell
Dimensions944mm*809mm*285mm
WeightApprox. 265kg
EnclosureSheet metal
TerminalM8
Colourwhite/customization
LCDYes
BluetoothYes
IP RatingIP54

Discharge

Discharge Current (Recommend )≤100A  continuous（25°C）
Discharge Current (Maximum)200A  continuous(25°C）
Discharge Cut-off Voltage41.6V

BMS

Over-charge ProtectionYes
Under Discharge ProtectionYes
Over Current Protection200A
Short Circuit ProtectionYes
Temperature ProtectionYes
Balance FunctionYes

Environmental

Charge Temperature0℃ to 50℃(32℉ to 122℉)
Discharge Temperature-20℃ to 55℃(-4℉ to 131℉)
Storage Temperature-10℃ to 45℃(14℉ to 113℉)
CharactersClean, reliable, efficient, eco-friendly

Tailor It Further？– Click for More Options!

More models, voltages, capacities, dimensions, weights, and casing colors are available;
get accurate battery recommendations for different applications.

CUSTOMIZE YOUR BATTERY SOLUTION

Application Areas
E-Tricycles E-Tricycles

This LiFePO4 battery is specially designed for electric tricycles, tailored for scenarios such as passenger carrying, freight transport and warehousing handling. It is suitable for various electric tricycles, rickshaws and small logistics tricycles. It has passed international certifications such as CE, ROHS, MSDS and UN38.3, with full-process quality control and stable supply.
Golf Carts/UTVs/LSVs Golf Carts/UTVs/LSVs

Direct supply from the source factory, LiFePO4 battery specially designed for golf carts, suitable for various golf carts for course travel, park sightseeing and all kinds of low-speed electric vehicles, covering 48V/60V/72V mainstream voltage, with customizable capacity of 50Ah-200Ah. It has passed CE and UN38.3 certifications, is maintenance-free with stable endurance, supports OEM/ODM, and ensures worry-free supply.
Forklifts Forklifts

This LiFePO4 forklift battery is specially designed for high-intensity industrial operations, delivering powerful output and exceptional durability.Featuring maintenance-free design, no acid pollution, and opportunity charging capability, it is an ideal upgrade solution for modern electric forklifts.
Car Starting Car Starting

This LiFePO4 automotive starting battery adopts advanced lithium battery technology, specially designed for efficient and stable engine starting. With high cold cranking current (CCA), it can achieve instant starting whether in severe cold winters or scorching hot summers. It is suitable for various passenger cars and commercial vehicles, and is also an ideal choice for racing car weight reduction, high-end model upgrades and RV modifications.
RV/Marine RV/Marine

This LiFePO4 battery, specially designed for RVs and off-grid living, is available in 12V and 24V. It is equipped with a built-in intelligent, supporting Bluetooth monitoring and low-temperature power-off protection. Whether powering high-power air conditioners or meeting the power needs of long-term camping, it can output strong and stable power consistently. It is the ideal upgrade option to replace traditional lead-acid batteries.
