RV/Marine

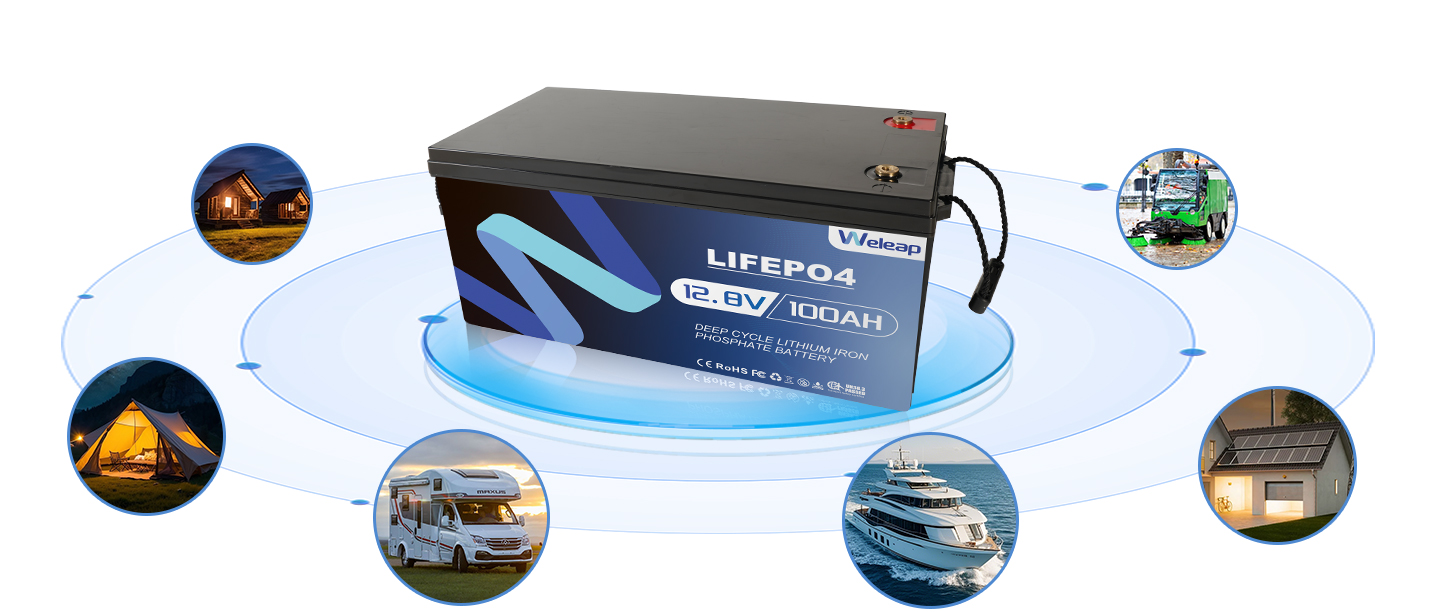

This LiFePO4 battery, specially designed for RVs and off-grid living, is available in 12V and 24V. It is equipped with a built-in intelligent, supporting Bluetooth monitoring and low-temperature power-off protection. Whether powering high-power air conditioners or meeting the power needs of long-term camping, it can output strong and stable power consistently. It is the ideal upgrade option to replace traditional lead-acid batteries.

Solution for RV/Marine Batteries

Based on your specific vehicle model, load capacity requirements, battery compartment dimensions, color preferences,
and other specifications, we will provide comprehensive customized services utilizing our strong OEM/ODM capabilities.

Internal Structure

100% New,A grade honored cells

Battery Accessories

Bluetooth App

The Bluetooth app can monitor key parameters such as remaining battery power, voltage, and temperature in real time and present them in a visual format. lt can also record historical data and perform fault diagnosis, making the opera- tion convenient and intuitive.

Battery Charger[Optional]

The internal potting process and sealed outer shell enhance its resistance to vibration and impact, while also providing excellent insulation, heatd issipation, and waterproof, dustproof, and corrosion-resistant properties

Technical Specifications

COMMON
MODELS
Nominal
Voltage
Nominal
Capacity
CombinationDimension
(W*D*H)
WeightLoad
Power
Charging
current
LFP-12V50Ah12.8V50Ah4S1P229x138x208mm6.0kg≤500w≤20A
LFP-12V60Ah12.8V60Ah4S1P229x138x208mm7.0kg≤500w≤20A
LFP-12V100Ah12.8V100Ah4S1P328x172x220mm11.0kg≤1000w≤50A
LFP-12V150Ah12.8V150Ah4S1P483x170x240mm15.0kg≤1000w≤50A
LFP-12V200Ah12.8V200Ah4S1P522x240x218mm20.0kg≤1000w≤50A
LFP-12V280Ah12.8V280Ah4S1P522x240x218mm30.0kg≤1000w≤50A
LFP-12V300Ah12.8V300Ah4S2P522x240x218mm30.0kg≤2000w≤50A
LFP-12V400Ah12.8V400Ah4S2P520x269x220mm40.0kg≤2000w≤50A
LFP-24V50Ah25.6V50Ah8S4P328x172x220mm11.0kg≤1000w≤20A
LFP-24V60Ah25.6V60Ah8S4P328x172x220mm13.0kg≤1000w≤20A
LFP-24V100Ah25.6V100Ah8S4P522x240x218mm20.0kg≤2000w≤50A
LFP-24V200Ah25.6V200Ah8S4P520x269x220mm40.0kg≤2000w≤50A
LFP-24V280Ah25.6V280Ah8S4P640x245x200mm60.0kg≤2000w≤50A
LFP-24V300Ah25.6V300Ah8S4P640x245x200mm60.0kg≤2000w≤50A
LFP-48V100Ah51.2V100Ah16S1P520x269x220mm40.0kg≤4000w≤50A

Advantages

Safety Performance

Lithium iron phosphate batteries do not explode or burn at high temperatures or when overcharged, so they have good safety.

Long Life

Long life lead-acid batteries have a cycle life of about 300 times, with a maximum of 500 times. However, lithium iron phosphate power batteries have a cycle life of over 4000 times(80%DOD).

High-capacity

It has a larger capacity than ordinary batteries (lead acid, etc.).

Lightweight

A lithium iron phosphate battery with the same specification and capacity has a volume of 2/3 of that of a lead acid battery and a weight of 1/3 of that of a lead acid battery.

Environment Protection

Mon-toxic, pollution-free, and comply with European ROHS regulations, making them an abso-lute green environmental protection battery certificate.

Battery Management System(BMS)

Lithium iron phosphate batteries have a protective plate (BMS management system) that prevents Overcharging, over-discharging, overcurrent, short circuit, temperature, resulting in longer and safer battery life.

Power Up Your Compatible Ride

We offer customized multi-battery solutions for various vehicletypes to meet the power needs of different
models and provideefficient and adaptable power support.

Video

Customized Delivery Process

  • Confirmation of basic requirements
    Capacity, voltage, application, etc.
  • Confirmation of customized requirements
    Size, color, logo, connector, bluetooth, display, etc.
  • Confirmation from technica and production de
    Drawings, specifications, production plan.
  • Client Inspection
    Provide photos, or video product verification, and issue product qualification report.
  • Quality Inspection
    Raw materials, cell consistency, battery pack connection, charging and discharging, Extreme environment testing etc.
  • Standardized production
    Cell production, welding assembly, BMS debugging, housing installation etc.
  • Packaging Marking
    Comply with UN.38.3 standard battery transport packaging for shipping.
  • Transportation Tracking
    Whatever it is air freight, sea or express delivery, the goods can be tracked.
  • User Feedback
    Your satisfaction is our goal always!
