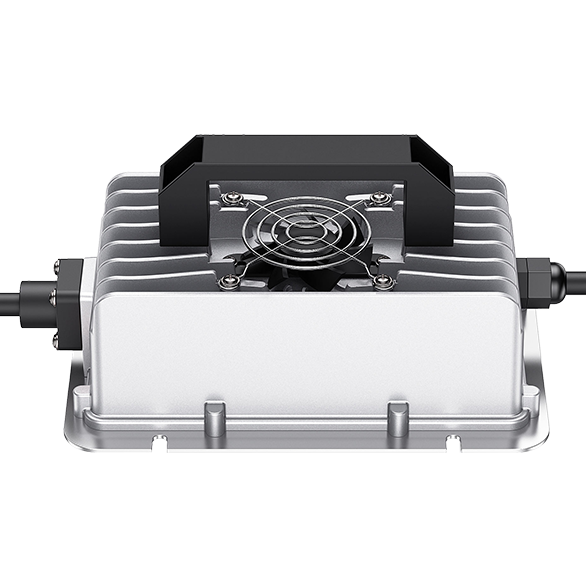

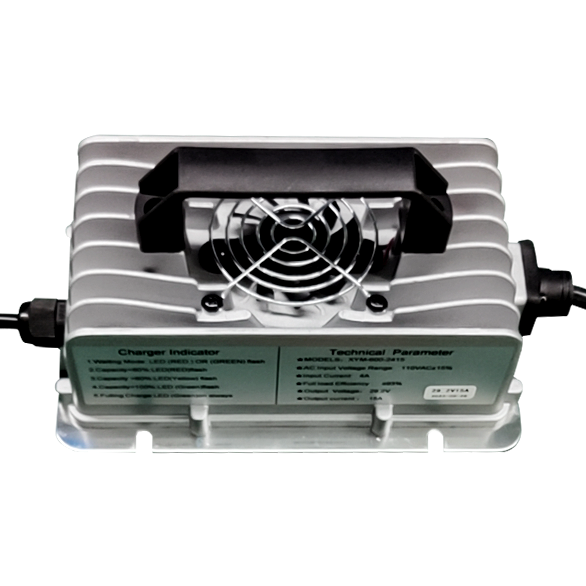

600W Portable Charger

  • Input Wide Voltage
    Input wide voltage Design , ranging from Acgov to AC264v, suitable for any voltage level in any region of the world .
  • High Power Facator
    AC input with Active power Factor correction (APFC) , which has low heat output and no pllution to electric network.
  • Fully-Sealed Pouring Process
    Fully- sealed and heat-conducting slica gel process , protection level IP67 , good seismic resistance , good heat dissipation performance and long service life.
  • High Relability
    wide temperature range: 40 – + 60 C , 1 00% full load aging test , soft switching technology; low switching loss ofpower devices , high efciency (> 93%) , energy saving and power saving.
  • High Safety
    waterproof 、 shockproof 、 acid fog proof、 dust proof and enhanced isolation design , make it safe to operate in harsh conditions.
  • Dynamic Charging Curve
    charger with computer interface , can adjust charging mode on site. suitable for lead -acid , ithium batteres and ther batteres. To achieve the best matching Eq upped with CAN Commu nication in lertace to real ze real -time com mun cation wth BMS .
  • Temperature Compensation
    lellent temperature compensation in the charging process , to avoid damage caused by overcharging or undercharging , and to maximize the battery life.

Technical Specifications

Electrical

AC Input Voltage Range90-132V&180-264V;47-63H
AC Input Max Current3.0A@220VAC
Efficiency≥92.0%
Noise≤45dB
Protection levelIP65
Net Weight1.7kg
Operating Temperature-30℃—+65℃
Storage Temperature-40℃—+95℃
Size:193*124*101.8mm
LED Light Indicator for Charging ProcessStandard
